Rubber 3 & 4 Core Round Cables

Conductor		Rubber Insulation	Rubber Sheath	Approx Overall Dia	Conductor Resistance at 20°C (Max)
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Thickness	Approx Overall Dia	Conductor Resistance at 20°C (Max)
Sq. mm.	Nos./mm	mm	mm	mm	Ω/km
0.5	16/0.20	0.60	0.90	6.00	39.0
0.75	24/0.20	0.60	0.90	6.80	26.00
1.00	32/0.20	0.60	0.90	7.00	19.50
1.50	22/0.30	0.80	1.60	10.20	12.10
2.50	36/0.30	0.90	1.80	11.90	7.41
4.00	56/0.30	1.00	1.90	13.50	4.95
6.00	84/0.30	1.00	2.10	15.60	3.30
10.00	140/0.30	1.20	3.30	20.60	1.91
16.00	226/0.30	1.20	3.50	24.20	1.21
25.00	354/0.30	1.40	3.80	29.10	0.780
35.00	490/0.30	1.40	4.10	32.10	0.554

Conductor		Rubber Insulation	Rubber Sheath	Approx Overall Dia	Conductor Resistance at 20°C (Max)
Nominal Size in	Nos. & Dia of Wire	Nominal Thickness	Nominal Thickness	Approx Overall Dia	Conductor Resistance at 20°C (Max)
Sq. mm.	Nos./mm	mm	mm	mm	Ω/km
1.50	22/0.30	0.80	1.70	11.20	12.10
2.50	36/0.30	0.90	1.90	13.00	7.41
4.00	56/0.30	1.00	2.00	14.90	4.95
6.00	84/0.30	1.00	2.30	17.50	3.30
10.00	140/0.30	1.20	3.40	22.60	1.91
16.00	224/0.30	1.20	3.60	27.10	1.21
25.00	350/0.30	1.40	4.10	32.70	0.780
35.00	490/0.30	1.40	4.40	36.20	0.554

Temperature range -40° to +90°

Excellent Impact Resistant

Excellent Weather Resistant

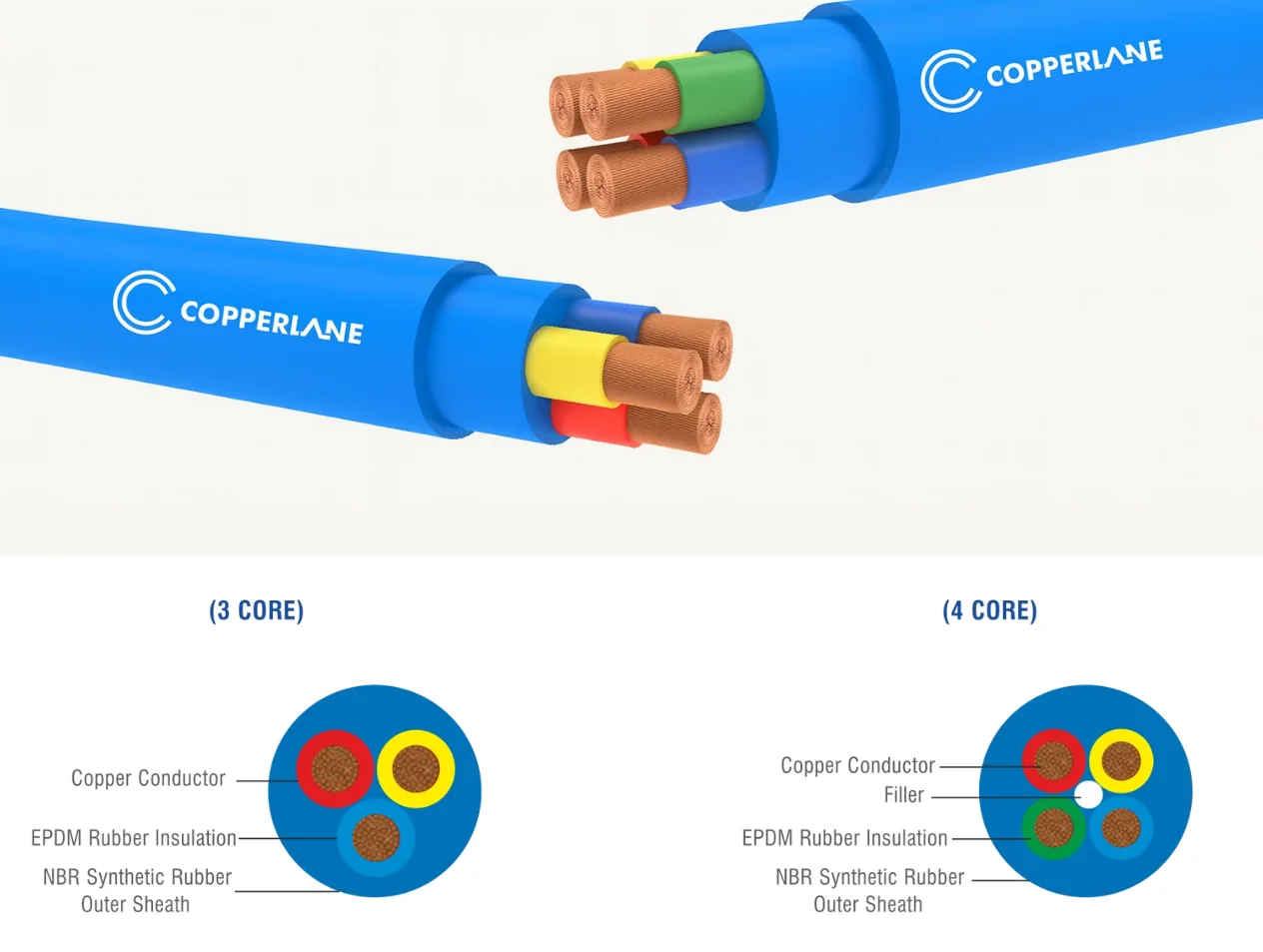

Conductor :

Finely stranded bare flexible copper conductor.

Insulation :

EPDM Rubber

Sheath :

NBR Rubber

Core Colours :

3 Core : Brown, Blue, Black
4 Core : Brown, Blue, Black, Yellow with Green

1 :

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.

2 :

For continuous use in deep well to supply power to submersible motors for the depth upto 500 mtrs.
