Solar Cable

Technical Data :

Ambient Temperature : -40°C − +90°C

Minimum Bending Radius: 5 x OD (fixed), 15 x OD (occasional flexing)

Flame retardant according to IEC 60332-1-2

Low smoke emission < 20% as per ASTM D-2843

Halogen free according to EN 50267-2-1/-2, IEC 60754-2

Maximum Temperature at Conductor: 120°C (20000h)

Short Circuit Temperature: 200°C (at conductor max. 5sec)

Size in mm2	Nom. Sheath. Thickness in mm	Nom. Sheath. Thickness in mm	Appx. Overall Dia in mm	Tinned Copper D.C Conductor Resistance ohm./km	Current Carrying capacity at 60 'C in Air (Amps.)	Permissible Short Circuit Current (Isc) 5 sec. (kA)
1.5	0.50	0.50	4.10	13.700	30	0.19
2.5	0.50	0.50	4.50	8.210	41	0.32
4	0.50	0.50	5.20	5.090	55	0.5
6	0.50	0.50	5.70	3.390	70	0.76
10	0.50	0.50	6.90	1.950	98	1.26
16	0.50	0.50	8.00	1.240	132	2
25	0.90	1.00	11.00	0.795	176	3.15
35	0.90	1.10	12.30	0.565	218	4.41
50	0.90	1.20	14.50	0.393	276	6.3
70	1.00	1.30	16.70	0.277	347	8.82
95	1.10	1.50	19.10	0.210	416	12
120	1.20	1.60	21.20	0.164	488	15.1
150	1.40	1.70	24.00	0.132	566	18.9
185	1.60	1.90	26.80	0.108	644	23.3
240	1.70	2.10	29.90	0.0817	775	30.4

Rated Voltage : 0.6/1 kV AC

Rated DC Voltage: 1.5 kV

Maximum Permitted DC Voltage: 1.8 kV (conductor/conductor,non earthen system, circuit not under load)

Maximum Permitted AC Voltage: 1 KV

Working Voltage: DC 1000 V

Spark Test: 6000 V. ac (8400 Vdc)

Voltage Withstand: 6500 V as per EN50395 for 5 min

Ampacity: According to requirements for cables for PV systems

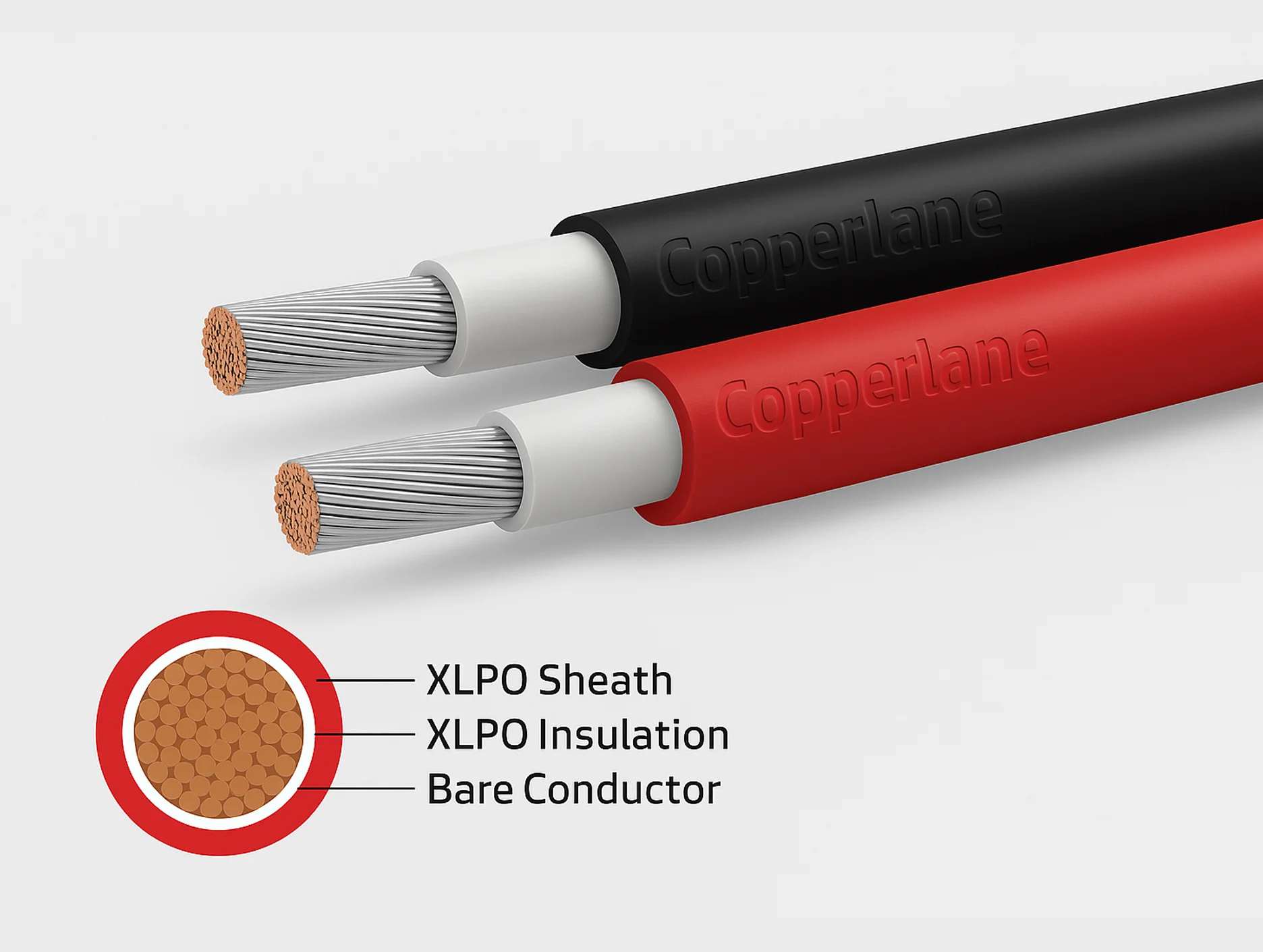

Conductor :

Electrolytic tinned copper of class 5 as per (IEC 60228)

Insulation :

XLPO to operate at max. temp. of 120°C similar to (E16/E18)IEC 60502-1

Sheath :

XLPO / cross linked EVA solidly connected with insulation (visible layers)

1 :

For Solar Panel, Solar Power Plant, Solar Pump Installation.
