Welding Cable

TECHNICAL INFORMATION

Cross Sectional Area	Copper Construction	Inner Dia	Outer Dia Appx.	Max. Conductor Resistance at 20˚C	Current Rating					Non Welding Application
					Welding Application
					Duty Cycle
					100%	85%	60%	30%	20%
Sq. mm.	Nos. / Dia. mm	mm	mm	Ω/km	amp	amp	amp	amp	amp	amp
10	322 / 0.20	6.30	9.90	1.910	105	115	135	190	235	110
16	511 / 0.20	8.00	10.70	1.210	135	145	175	245	302	138
25	798 / 0.20	9.50	12.10	0.780	180	195	230	330	402	187
35	1121 / 0.20	11.00	14.20	0.554	225	245	290	410	503	233
50	1596 / 0.20	12.30	16.30	0.386	285	310	370	520	637	295
70	2220 / 0.20	14.40	18.70	0.272	355	385	460	650	794	372
95	1349 / 0.30	16.60	20.80	0.206	430	470	560	790	961	449
120	608 / 0.50	18.20	23.00	0.161	500	540	650	910	1118	523
150	760 / 0.50	21.10	27.60	0.129	580	620	740	1040	1297	608
185	943 / 0.50	23.80	30.80	0.106	660	715	850	1200	1476	690
240	1225 / 0.50	26.80	34.00	0.0801	710	770	916	1296	1587	744

Ultra high performance flexible welding lead, double insulated for longer life and added safety

Better flame retardant properties

Outstanding toughness & durability

High resistance to cuts, tears & abrasion

Resistance to oil, solvents and chemicals

Excellent ozone and weather resistant

Conductor :

High conductivity, bare annealed copper flexible conductor, EC copper class 5 and class 6 generally conforms to IEC 60228, DIN VDE 0281

Insulation :

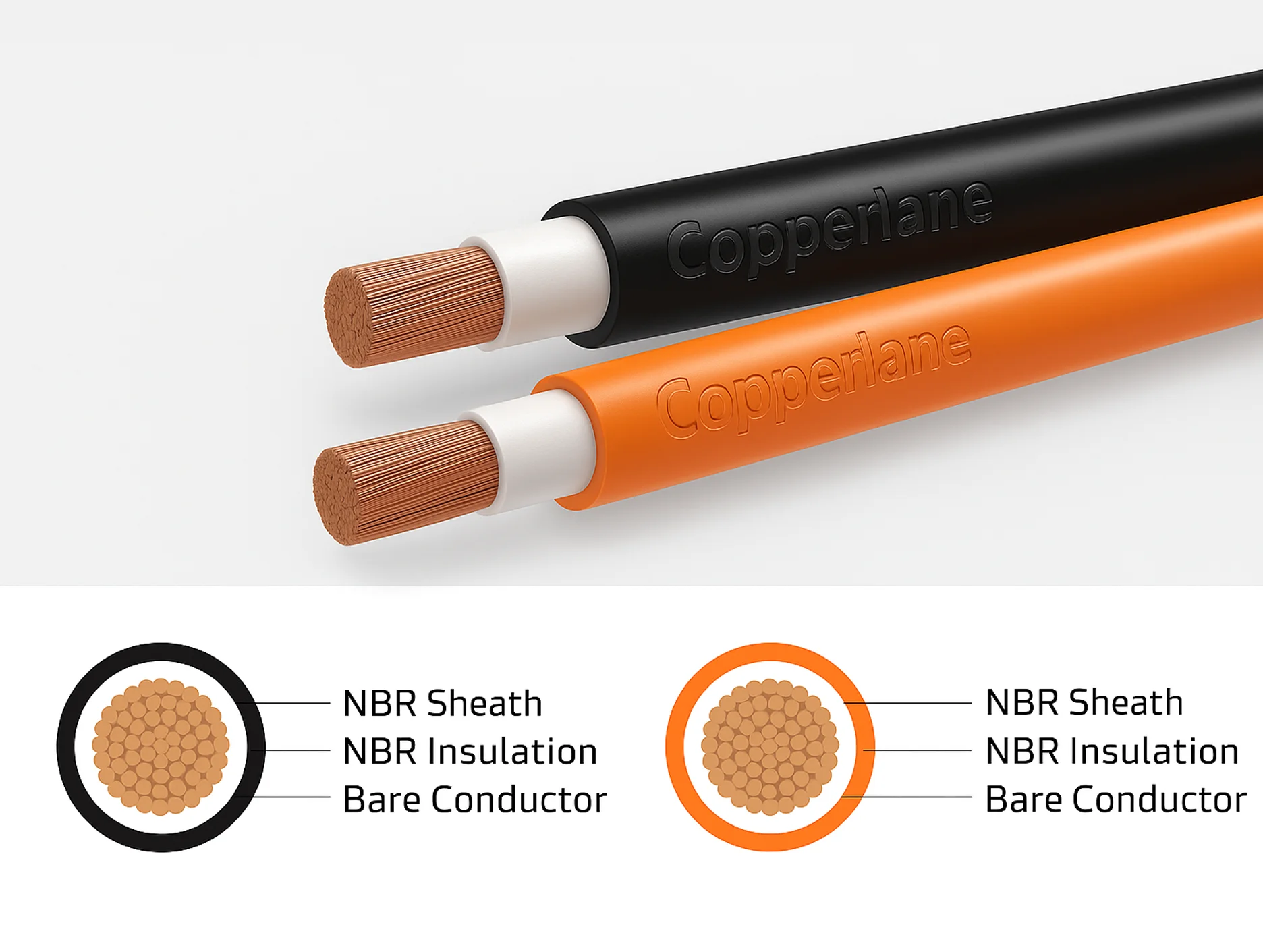

NBR Insulated flexible Nitrile rubber (NBR) insulated

Colours Code :

Orange & Black Jacket
*Any other Color on specific request can also be supplied

1 :

Designed for the secondary (high current) connection to automatic or hand-held metal arc welding electrodes. It is suitable for flexible use under rugged conditions, on assembly lines & conveyor systems, in machine tool and automatically operated line & spot welding machines

2 :

Standard length cable packing: Coils 100, 200, 300 and 500 m. in wooden reels
